Clark Automotive
Fine detail.
Real ink.
Black shirts.
A cutaway race car with intricate mechanical detail, metallic tones, and bright color accents, printed on black.
Separated with InkSplit and printed at our home shop, with no manual separation adjustments. A white base supports the color, while a separate highlight carries the brightest details and lettering.
Watch the print in progress
- GARMENT
- Black shirt
- SEPARATION
- InkSplit
- MANUAL ADJUSTMENTS
- None
- PRINTED AT
- Our home shop
Intricate artwork.

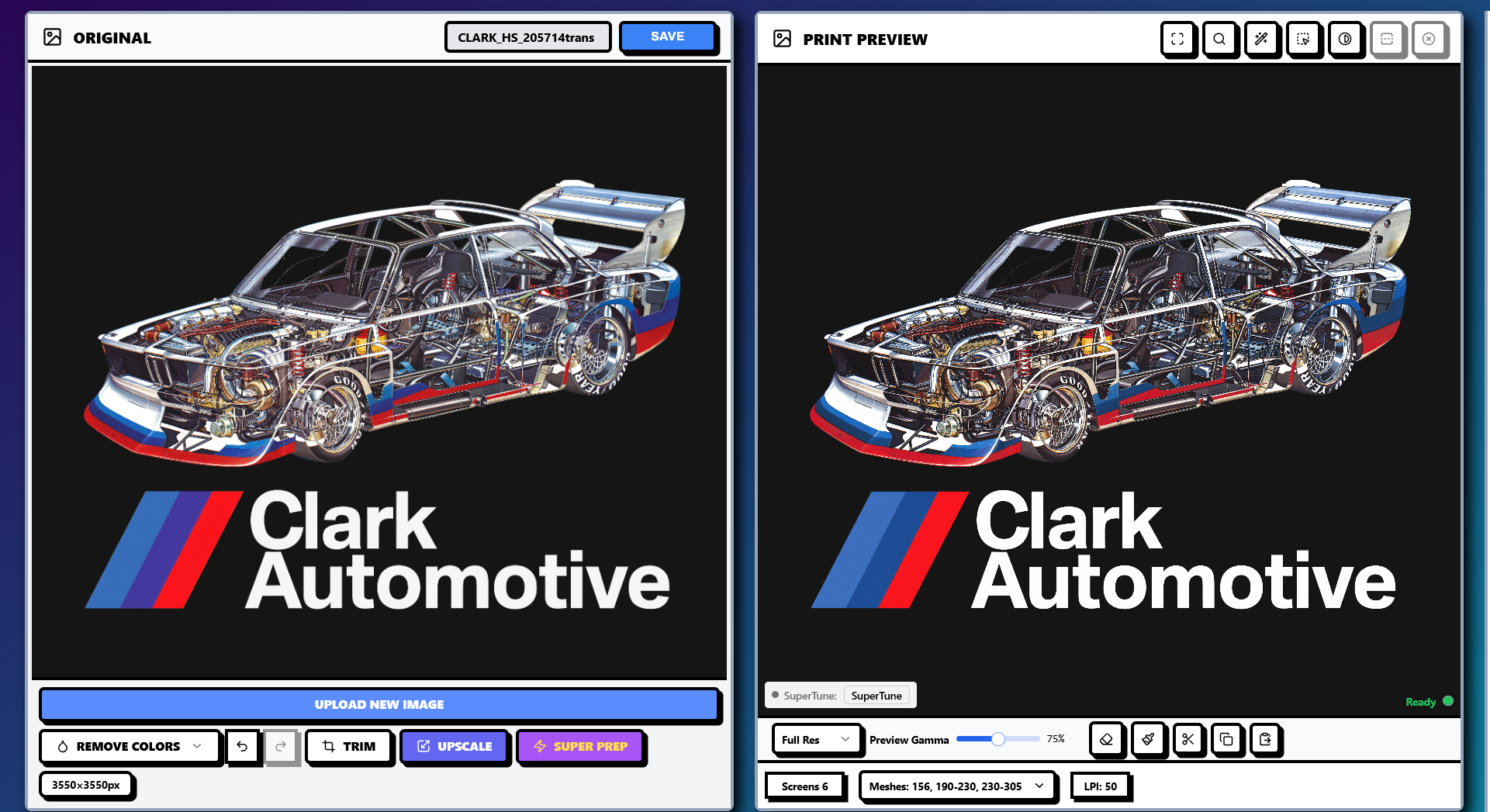

Separated for print.
Fine chassis lines, reflective metal, and bold lettering give this design a wide tonal range. Four color channels work with a white base and highlight to reproduce it on black fabric.

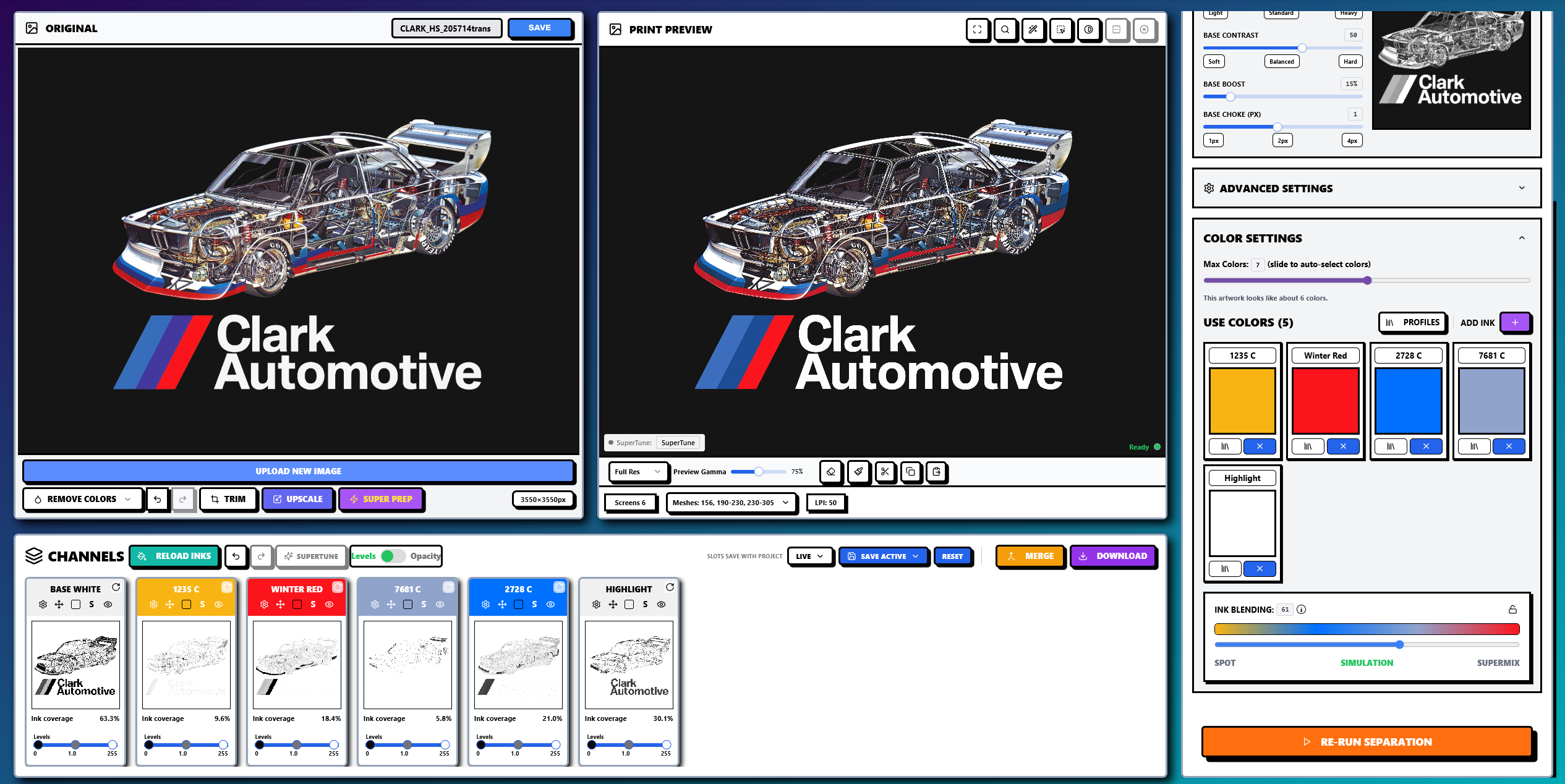

Inside the separation.

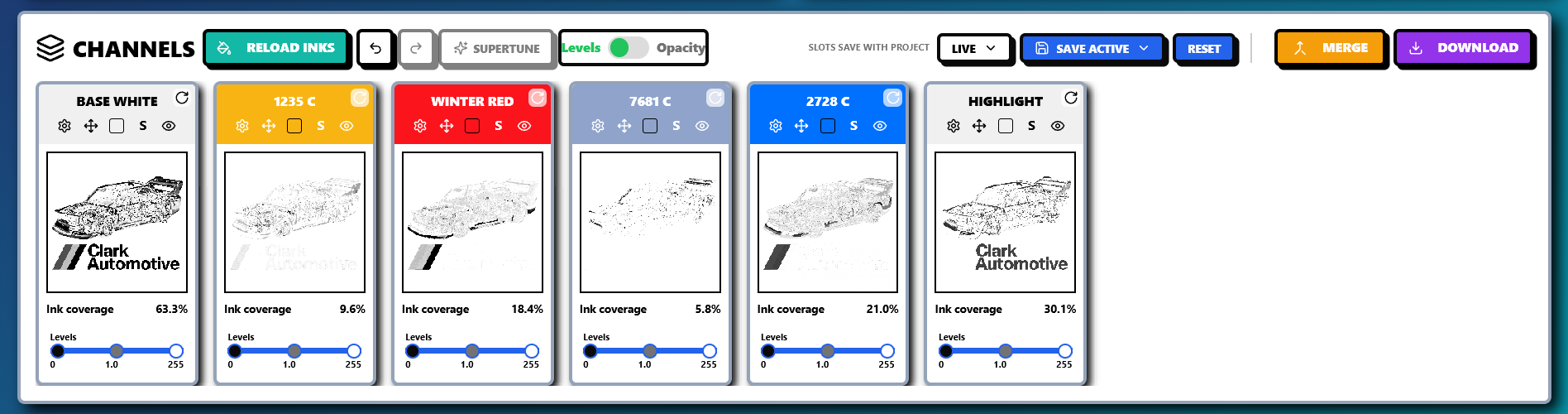

The separation uses Base White, 1235 C, Winter Red, 7681 C, 2728 C, and Highlight. Each channel carries part of the car’s detail, shading, or color.

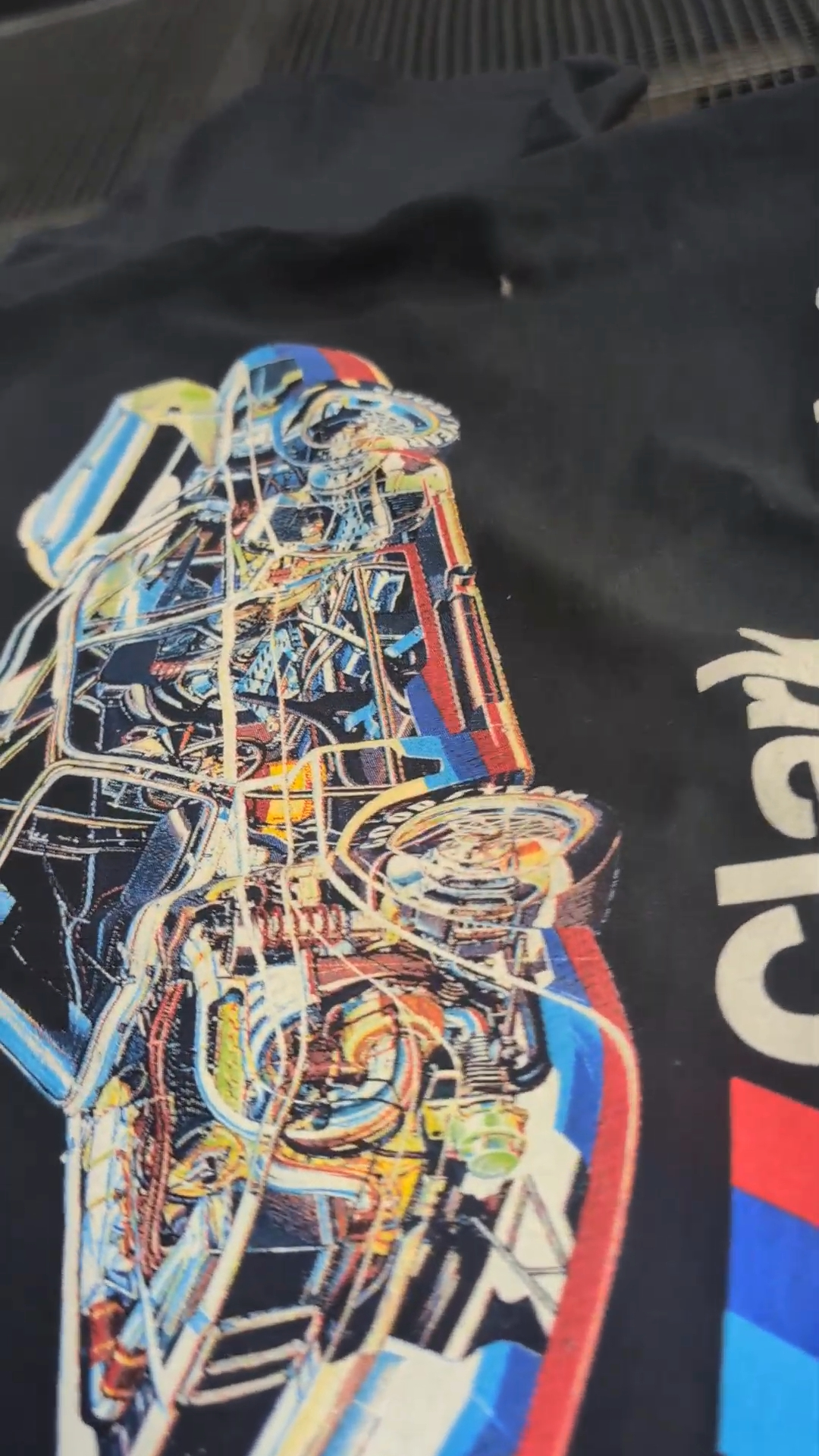

Fine lines.
Metallic tones.
The car combines thin structural lines, shaded engine parts, and bright reflections. Solid white lettering anchors the design against the black shirt.
Detail across the tonal range.
Dark mechanical recesses sit beside bright bodywork and fine tubing. The separation balances these tonal changes with the solid color accents and white lettering.
- More colors than screens. Oranges, purples, greens, and a range of tones and shades are created by blending these six screens, rather than adding a screen for each color.
- The shirt contributes the shadows. The black fabric supplies the darkest areas and works with varying ink coverage to create deeper shades.
- A smart white base. The underbase varies across the artwork, supporting brighter colors while letting the black shirt contribute to darker tones.
- Fine detail and bright highlights. Mechanical linework, reflective bodywork, and white lettering share the same six-screen separation.
Printed with a 156 mesh base, 230 mesh colors, and a 305 mesh highlight.
From white base
to final highlight.

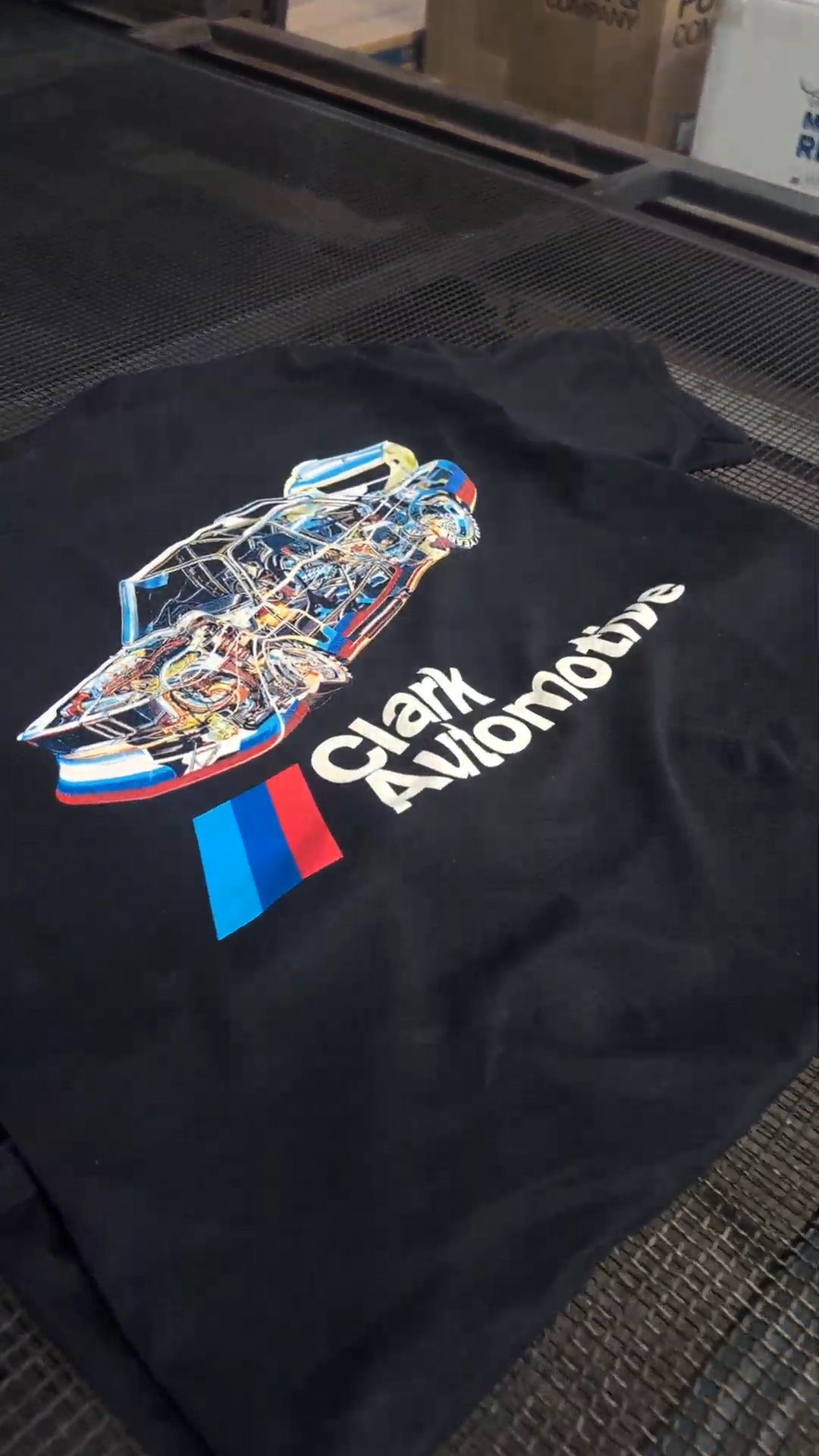

Printed at our home shop with a white base, four color channels, and a separate highlight. The production run brings the car’s linework and tonal detail onto black fabric.
All screens use a 22.5° halftone angle.
Mesh, ruling, and angle.
mesh
45 LPI · 22.5°
mesh
50 LPI · 22.5°
mesh
55 LPI · 22.5°
No manual separation adjustments after InkSplit. Printed at our home shop.
