KNOCK ’EM COLD
Bright color.
Soft blends.
Six screens.
Icy cyan, hot magenta, and violet tones bring a bold boxing design to life on black fabric.
Separated with InkSplit and printed at InkSplit Home Shop. Four color inks work with a white base and a separate highlight, with no manual adjustments needed after separation.
Watch it on press
- GARMENT
- Black shirt
- SCREENS
- 4 colors + base + highlight
- MANUAL ADJUSTMENTS
- None after separation
- PRINTED AT
- InkSplit Home Shop
Bold lettering.
Blended color.
The lettering shifts from cyan and white into blue-violet, while magenta fades meet deeper purple tones. Four color screens carry these transitions, supported by the white base and highlight.

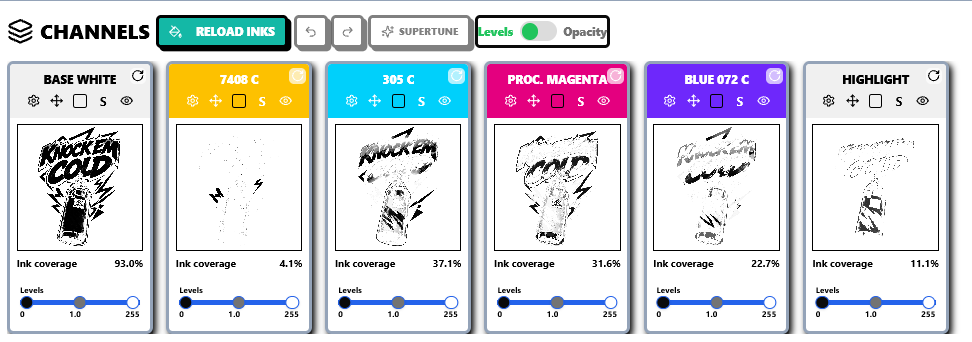

Inside the separation.
The press used Base White, 7408 C, 305 C, Pink 205, Blue 072 C, and Highlight. The separation screenshots show Process Magenta; Pink 205 replaced it on press. Six screens reproduce solid accents, fine texture, and blended tones.
Cyan to violet.
Ink to halftone.

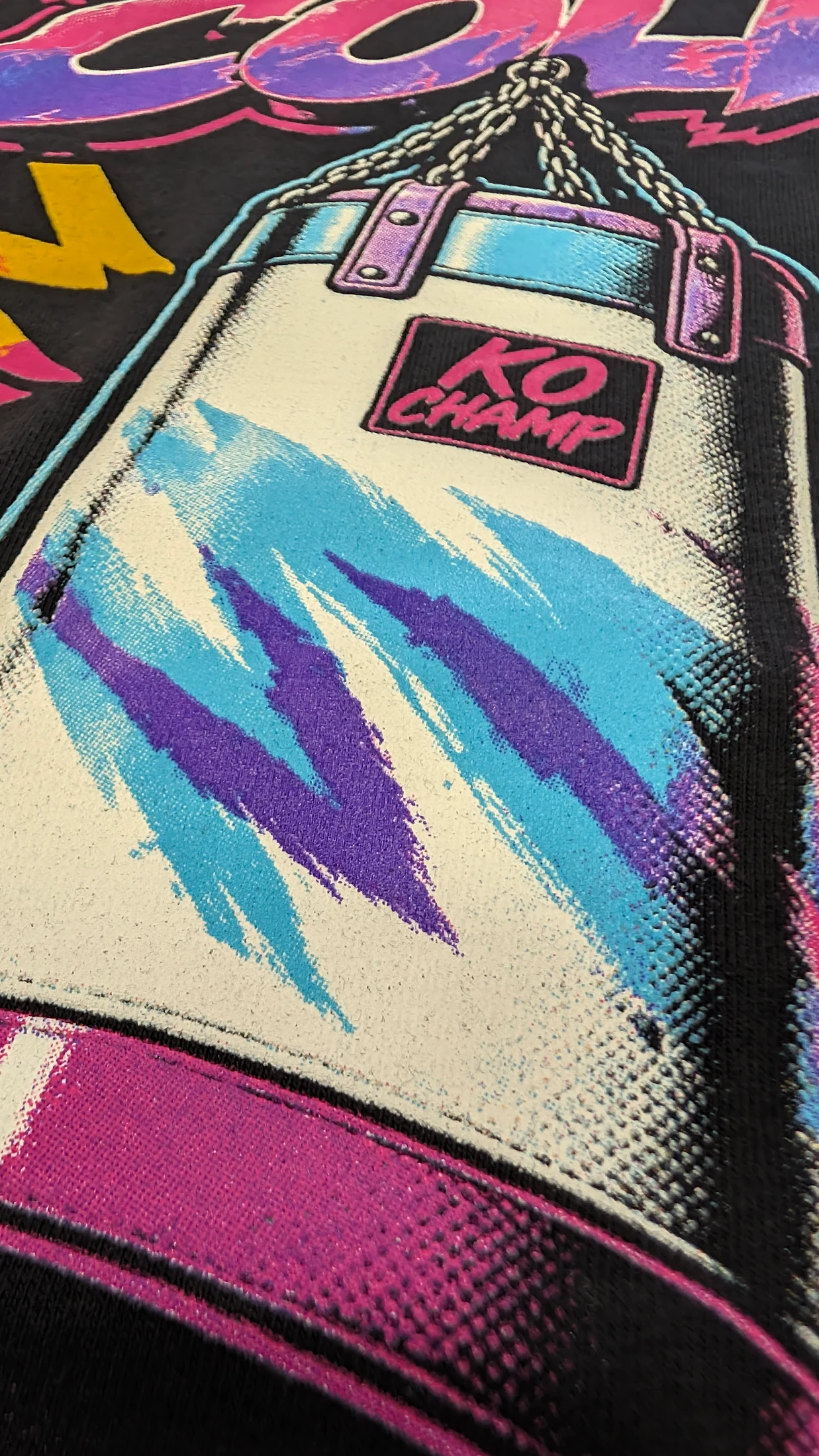

Look closely at the punching bag: cyan and violet accents meet white highlights, while halftone dots let the black shirt contribute to the shading.
More tones from the same screens.
The solid ink colors are only the starting point. Changes in halftone coverage and overlaps create intermediate colors and shades throughout the design.
- Four color inks. 7408 C, 305 C, Pink 205, and Blue 072 C share the design’s vivid accents and blended transitions.
- The shirt supplies the darkest areas. Black fabric contributes the shadows without a separate black ink screen.
- A variable white base. White support changes across the artwork, helping bright colors stand out while allowing darker tones to use the shirt.
- A separate highlight. The brightest lettering and punching-bag reflections have their own white channel.
No manual adjustments needed after the separation in InkSplit.
From white base
to finished print.

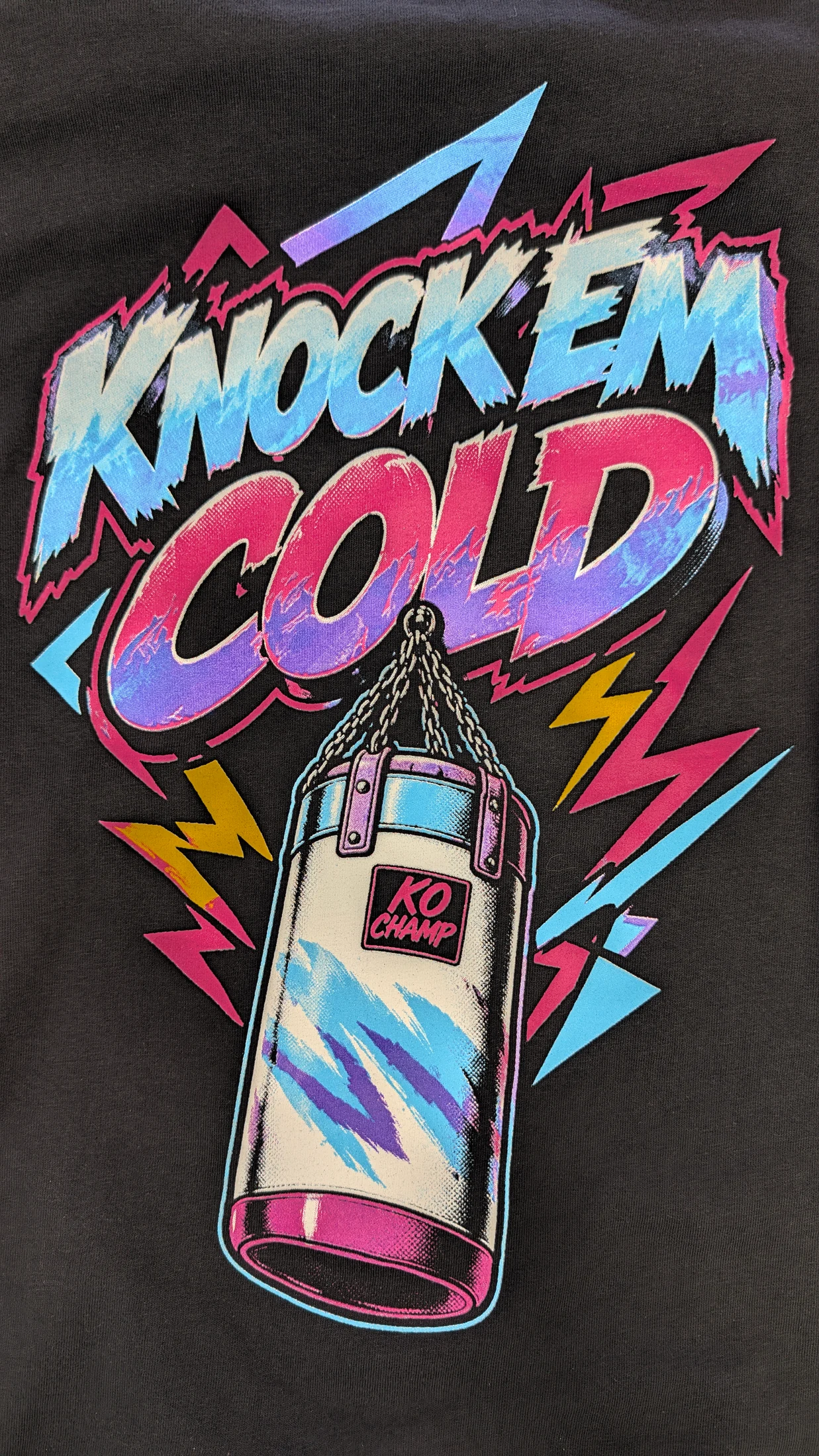

The production footage follows KNOCK ’EM COLD around the press and ends on the printed garment at InkSplit Home Shop.
Six screens · 50 LPI · 22.5° throughout.
Six screens.
One coordinated setup.
mesh
50 LPI · 22.5°
mesh
50 LPI · 22.5°
mesh
50 LPI · 22.5°
Simulated spot process · ink blending 67 · printed at InkSplit Home Shop. Press inks: 7408 C, 305 C, Pink 205, and Blue 072 C, plus Base White and Highlight.

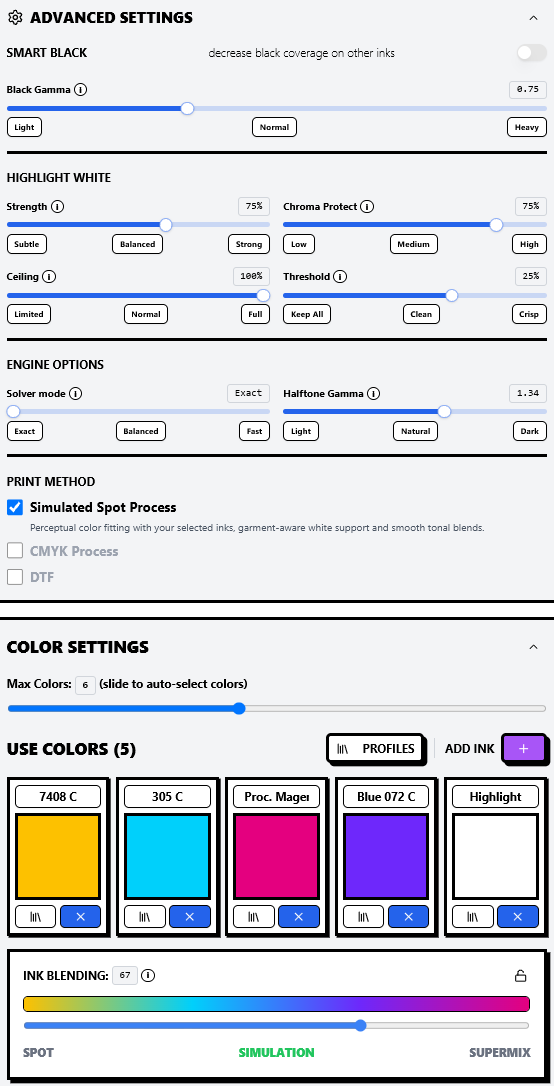

View the InkSplit settings
